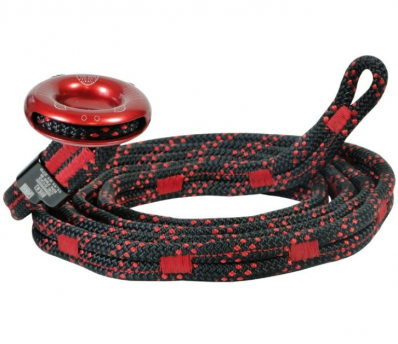

SNAKE ANCHOR

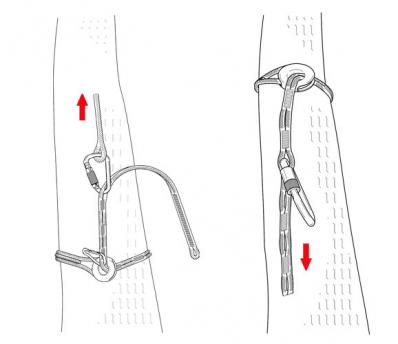

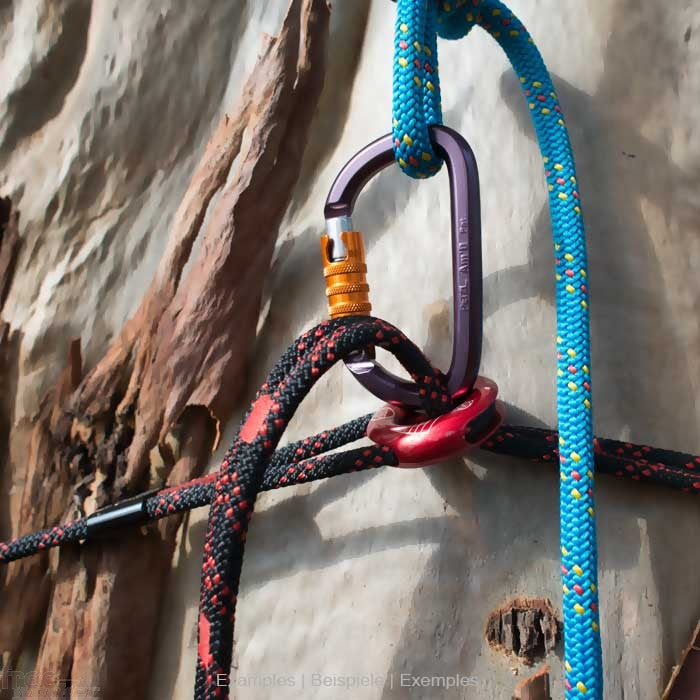

The Snake Anchor is the ultimate multi-functional tree anchoring device. Using an innovative and unique multi-stepped stitching system, each rated attachment point provides a built-in energy absorber in case of a fall. The Snake Anchor can be set up as either a basal anchor for SRT ascent or a remotely installed in-line work positioning system, or as an in-tree choked off anchor-point. The Snake Anchor is available in two sizes (5m and 2.5m).

KEY FEATURES

• Utility model
• Mobile anchor and connecting device with stepwise adjustable length
• Certified to EN 795 B

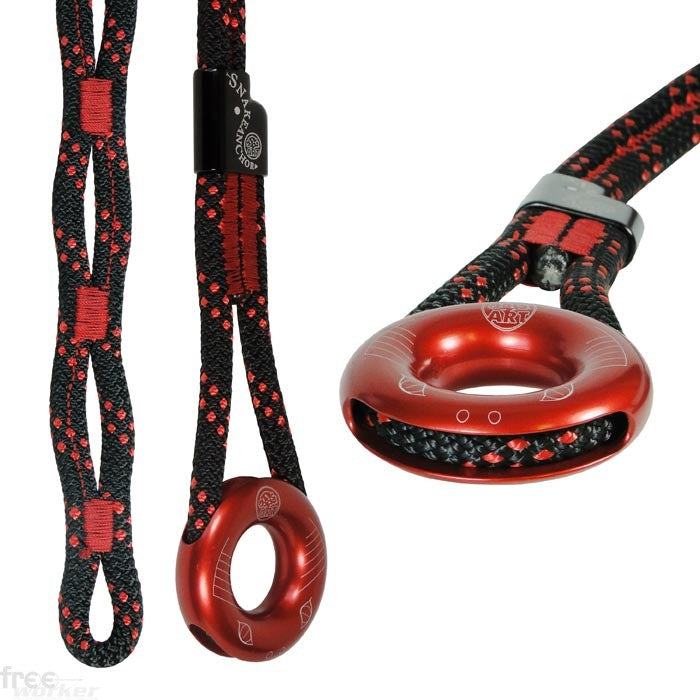

• Tunnel rings are made of aluminum machined in the solid
• To be used as anchor above or below load
• Length adjustable
• Securing the position in choking mode with non-locking karabiners
• Can be used as an adjustable friction saver with karabiners or pulleys
• Great abrasion resistance
• High loading capacity
• Enhanced safety and tensile load based on load evenly distributed to the whole of the Tube Ring
• Static load capacity of segment seams up to 4kN (working load)
• Segment seams' shock absorbing qualities from 5kN
• Service life: 5 years
• Tested with: 22kN/3min
• Breaking load: 22.5kN
