The RED's cams have a positively locking spring, which means that the device is self-parking rather than self-tailing. This is important for Rope Access work techniques as they require the back-up device to be positioned so as to reduce fall factors to a minimum.
The RED makes use of 'Rotational Braking' which means the device rotates clockwise creating friction and resistance, which then results in very effective automatic braking in the event of a sudden pull on the cows-tail such as might occur during a main line failure.

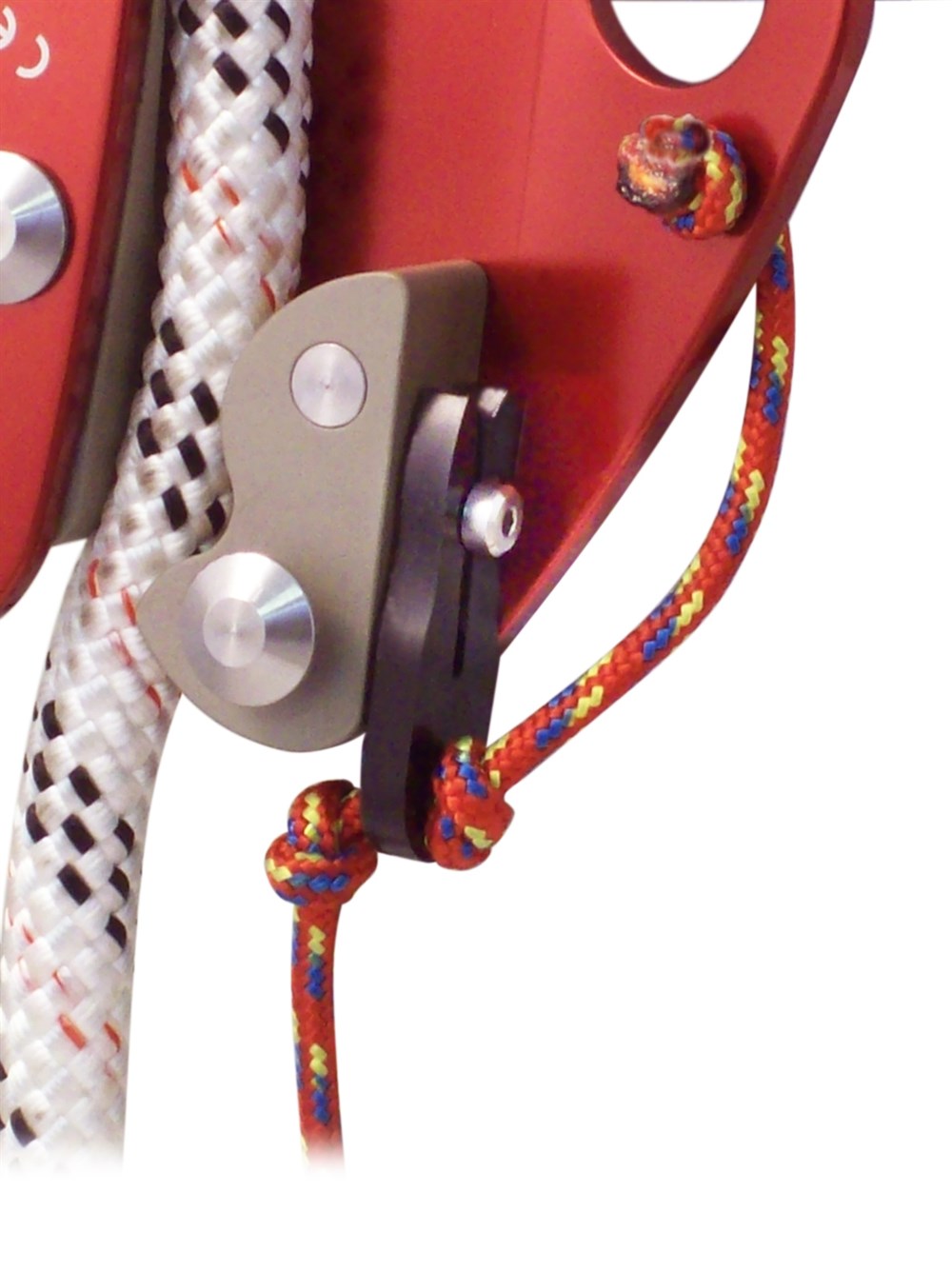

The Popper device is a breakaway release clip, which provides a secondary attachment point for the tow cord. When used during normal positioning activity, this secondary attachment point allows the user to tow the device directly downwards. In a panic situation, the popper clip is designed to release under load and mitigate against uncontrolled towing of the device.
View data sheet here.
*Standard (fixed) tow cord & non-tow cord versions also available.
Technical Information
Rope diameter range (mm) | 10.5 - 11mm (Approved Ropes only) |
Number of persons | 2 |
(WLL) Working Load Limit (kg) | 240 |
Serial numbering | As standard |
Cam material | Aluminium |
Finish | Anodised |
Approved Standards | EN 12841 |
